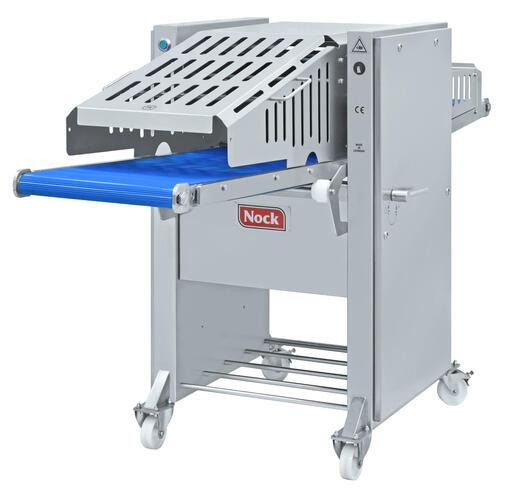

Cortex CB 495/5KK SLICER

Description

Standard equipment

  • Infeed conveyor
  • Discharge conveyor

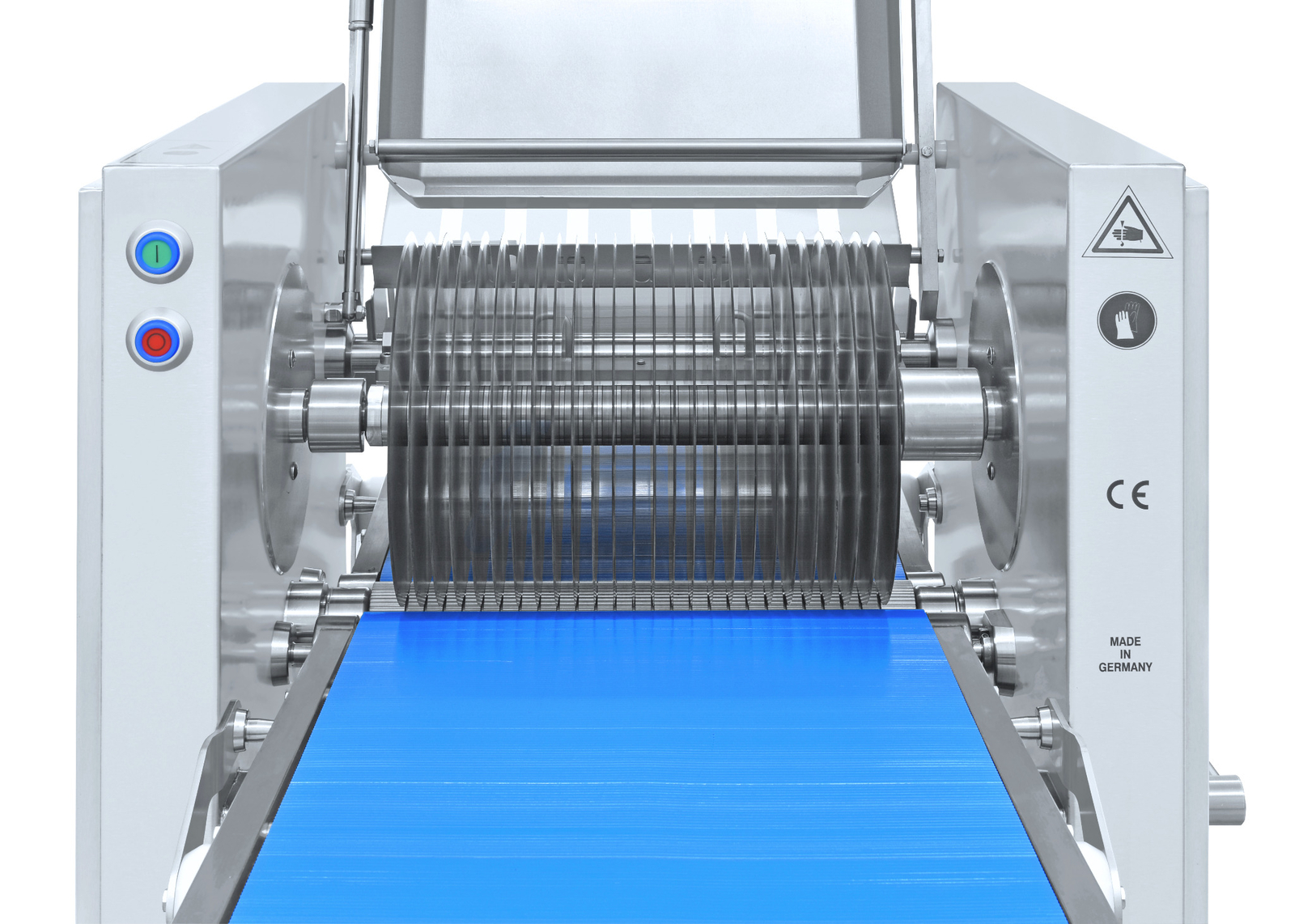

  • Intersection roller with quick change system
  • NOCK POWER PLATES® for typical NOCK service friendliness
  • NOCK EASY-FLOW® safety cover with pneumatic spring for exemplary operational safety
  • Lift out device for blade shaft
  • Safety cover for blades
  • Lockable castors
  • Stainless steel

Options

  • Adjustable lateral guides on infeed conveyor
  • Transport and storage box for blade shaft
  • Cleaning wagon for 2 blade shafts
  • Other speeds available
  • Plastic intersection roller with stainless steel core
  • Intersection roller without quick change system, but with scraper comb
  • Longer conveyors
  • Scraper on output conveyor

Technical data

Cortex CB 495/5KK SLICER
blade diameter 200 / 300 mm
max. throughput height 70 / 120 mm
blade equipment max. 390 mm
conveyor belt width 435 mm
max. throughput width 475 mm
conveyor speed 18 m/min
min. blade distance (techn. limit) 6 mm (depending on product)
available blade distance grids 6 – 7 – 8 – 9 – 10 – 11 mm
overall dimension W x H x D 820 x 1300 x 2450 mm
weight 260 kg (with 8 mm blade distance and 200 mm blade diameter)
motor performance 1.1 kW
electrical connection 3 AC – 400 V – 50 Hz
IEC 60309 16 A 6h
other voltages upon request
compressed air not required
